MFC-8460N
Network-Ready Flatbed Laser
Multi-Function Center®
Estimated Street Price: $399.99
Support Link: Click Here or http://tinyurl.com/5zxx6w
PLEASE NOTE THAT THIS TUTORIAL COMES WITH NO WARRANTY, IT WORKED FOR ME AND HOPEFULLY FOR YOU TOO. IF YOU DO NOT FEEL COMFORTABLE WITH ANY STEP, YOU SHOULD CALL BROTHER CUSTOMER SERVICE: 1-877-BROTHER (877-276-8437)
"Document Jam - Remove Jam, then press Stop"

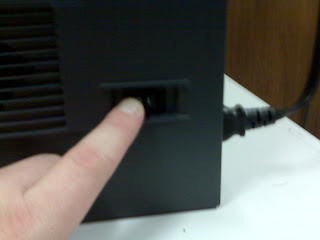

1. Turn the Printer off
2. Lift the Cover
3. Gently pull the paper out
4. Push the Paper Guides inward
5. Identify the following screws because you will need to remove them.

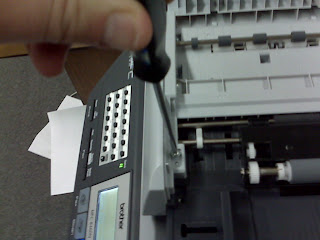

6. Use a Phillips screw driver and carefully remove the screws. Don't be lazy and try to unscrew them with the wrong sized screw driver! You will most likely strip the screw and then you are 'EF-D'

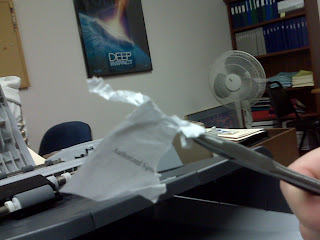

7. Once the screws are out, pull the sideout (see picture) so you can get your hand in there with pliers. Once you find the jamed piece of paper (usually in the left or right corner) take the pliers and GENTLY remove paper.
Gotcha you bastard!
***Optional: Test the ADF before putting the screws back in to make sure the jam is completely cleared.***
8. Put the screws back in place.
9. Turn is back on, and run a test copy. And Wa-La
